NOVA3D Whale4 Ultra-16K SLA Printer COB Backlight Heating Air Purification Syestem
NOVA3D Whale4 Ultra-16K 3D Printer
Ultra-High 16K Precision

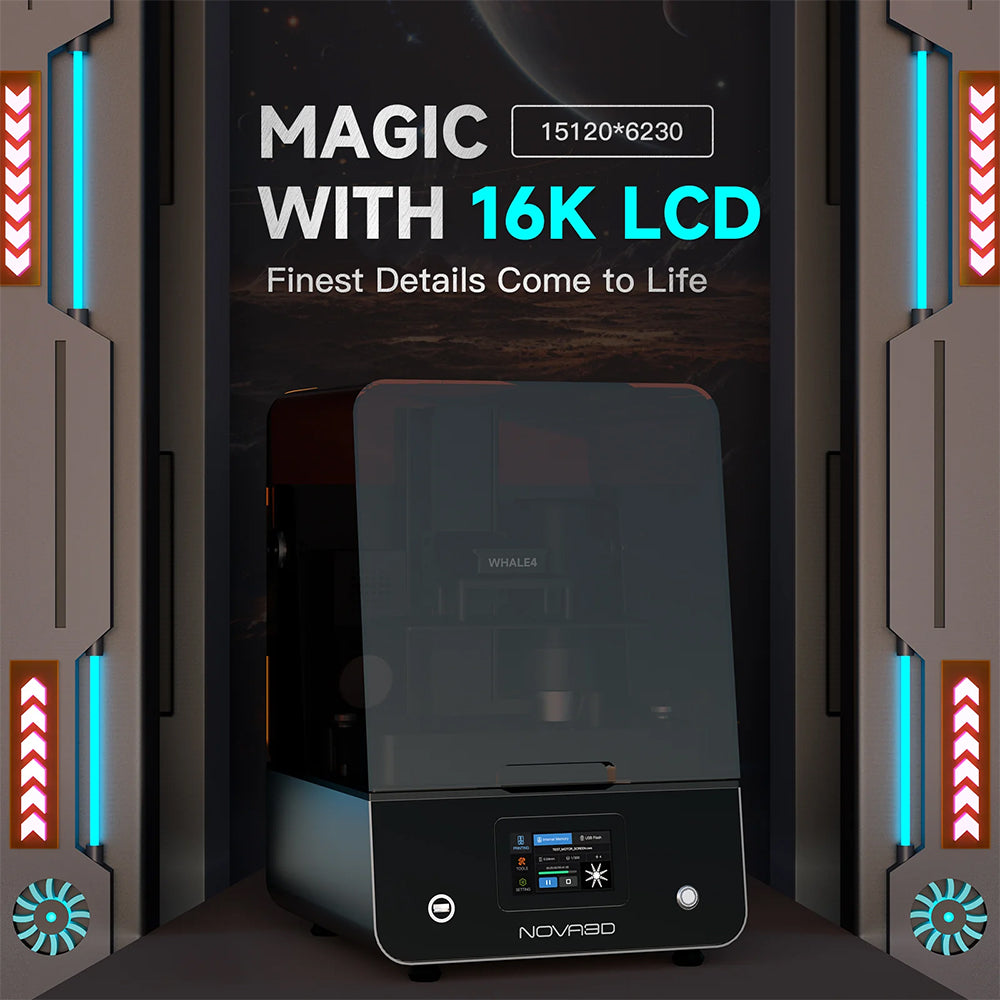

The Whale4 Ultra-16K is equipped with a 10.1" 16K monochrome screen delivering an incredible 15120 × 6230px resolution. This next-generation detail level ensures ultra-sharp edges and smooth surfaces, perfect for miniatures, jewelry, dental models, engineering prototypes, and artistic creations.
Key Features & Advantages
- 16K Ultra HD Printing – Achieve layer thicknesses as fine as 0.02mm, capturing even the smallest details with stunning accuracy.
- Faster Performance – With printing speeds up to 55mm/h, projects can be completed quickly and efficiently.

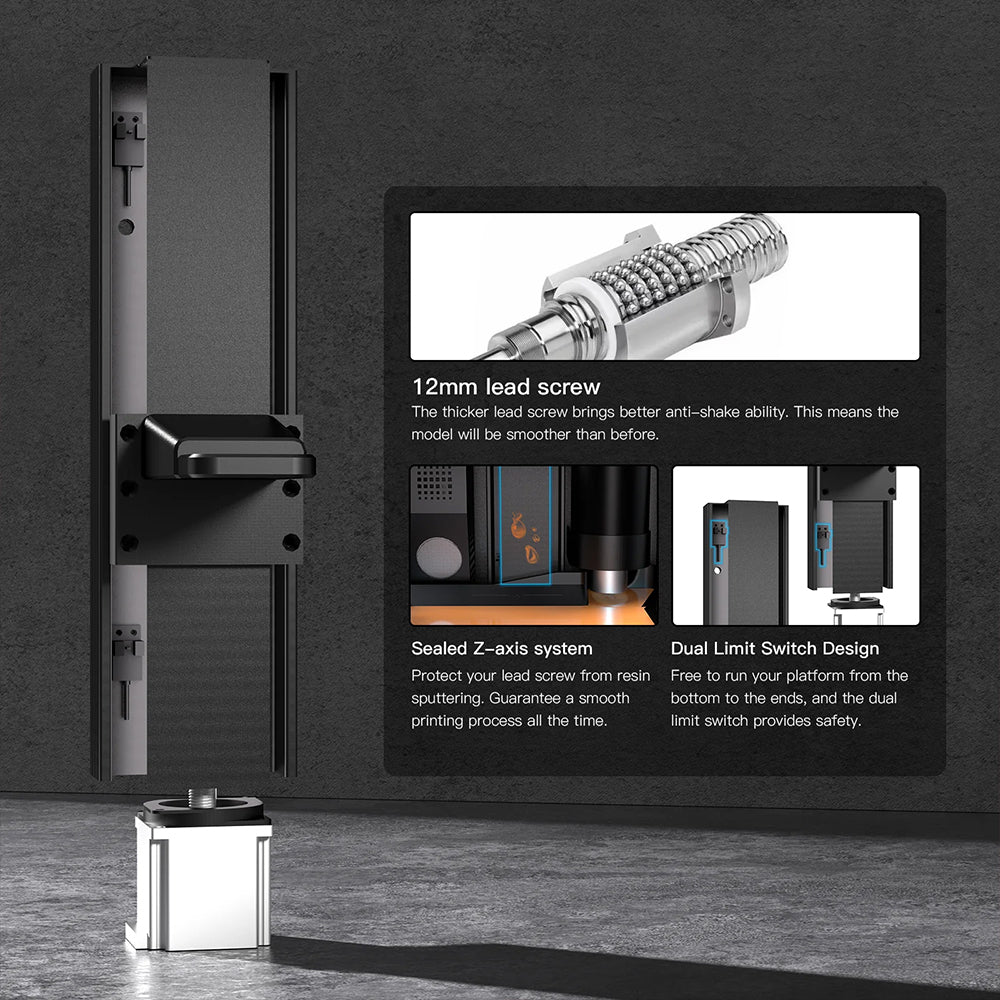

- Stable Z-Axis System – 12mm reinforced lead screw, single linear rail, and dual limit switches ensure smooth, shake-free movement and reliable performance.

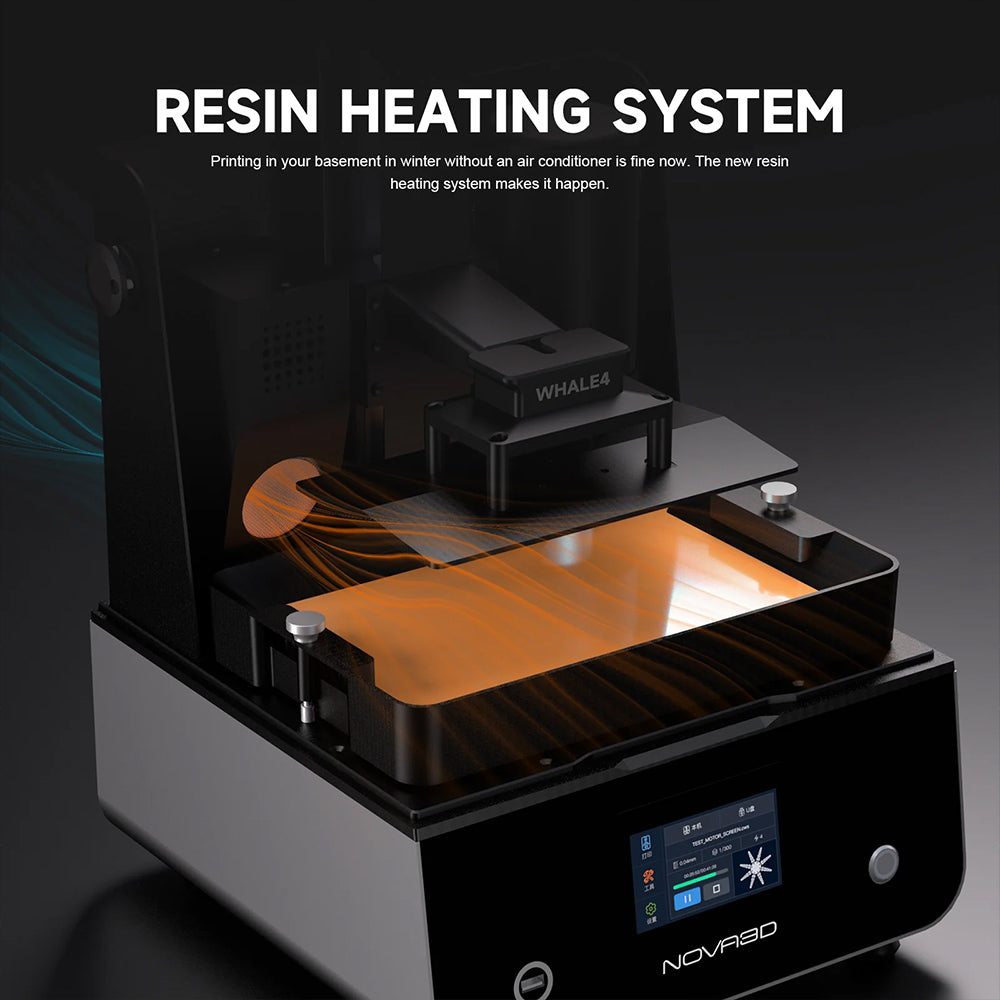

- Smart Heating Control – Optimized algorithms deliver 40% higher heating efficiency, guaranteeing consistent results even in cold environments.

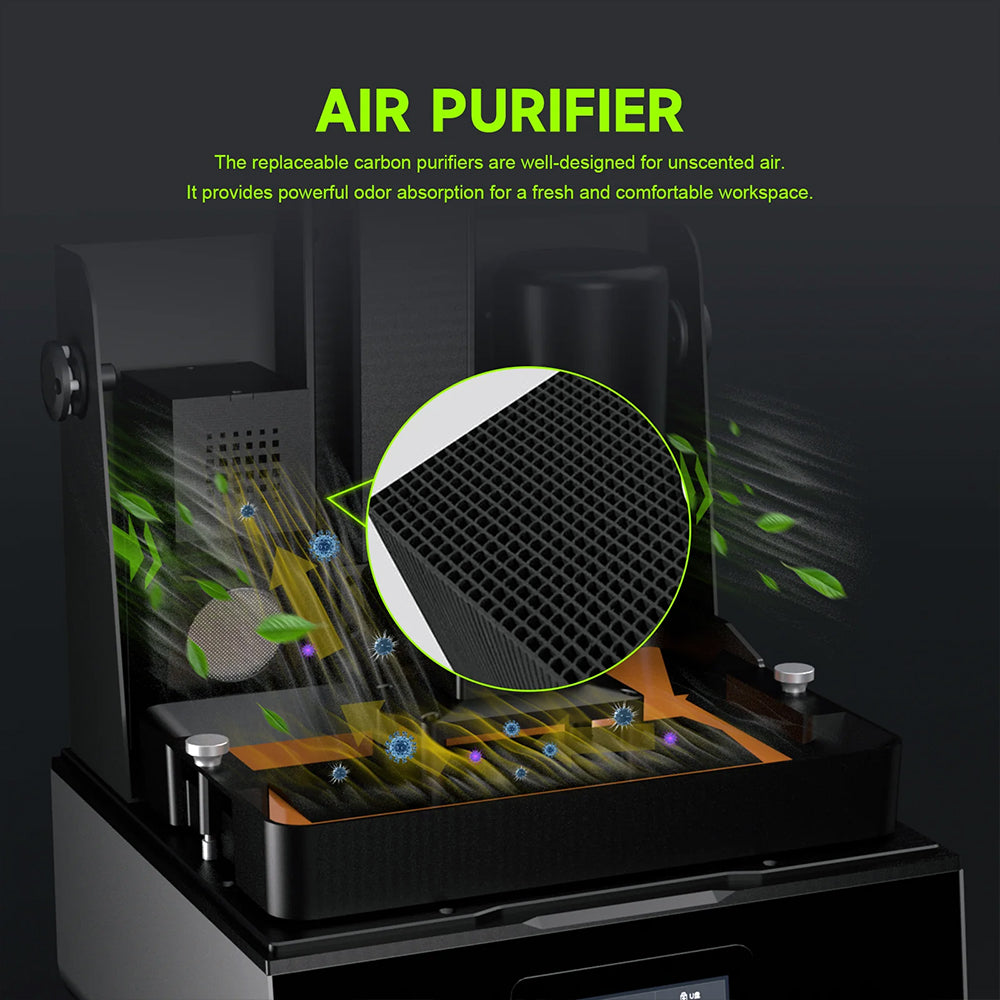

- Cleaner Printing Environment – Built-in replaceable activated carbon filter absorbs resin odor for safer and more comfortable use.
- Hassle-Free Leveling – Simply tighten four screws, no complicated calibration required.
User-Friendly Operation
- 4.3" Touchscreen Interface – Intuitive UI displays layers, progress, and estimated time with Start, Pause, and Stop controls.
- All-in-One Tool Menu – Quick access to platform calibration, resin vat cleaning, screen testing, and heating settings.
- Flexible File Transfer – Import files easily via USB flash drive or Wi-Fi. NovaMaker software also supports multi-printer fleet control.
Wide Resin Compatibility
Optimized for NOVA3D resin series but also compatible with most 405nm UV resins, offering flexibility for different applications and finishes.
Technical Specifications:
Print Volume: 221.6 × 118.3 × 220mm
Resolution: 15120 × 6230px (16K Monochrome LCD)
Layer Thickness: 0.02 – 0.1mm
Print Speed: Up to 55mm/h
Connectivity: Wi-Fi, USB
Software Support: NovaMaker, CHITUBOX, Lychee, VoxelDance Tango
Weight: 19.9kg
Dimensions: 348.5 × 345 × 520mm
Why Choose Whale4 Ultra-16K?
Designed for professionals, hobbyists, and businesses demanding superior print quality, high speed, and reliable performance. With advanced hardware, intuitive operation, and wide resin compatibility, the Whale4 Ultra-16K brings your most ambitious 3D projects to life.
